KONNWEI KW818 12V Car OBD2 EOBD Diagnostic Tool life time free upgrade six international languages

Name: KONNWEI KW818 12V Car OBD2 EOBD Diagnostic Tool life time free upgrade six international languages
Brand: Konnwei
Price: 1 USD

KONNWEI KW818 12V Car OBD2 EOBD Diagnostic Tool life time free upgrade six international languages Manufactures

Brand Name : Konnwei

Model Number : KW818

Certification : Patent, CE, RoHS, FCC

Place of Origin : China

MOQ : 1pc

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram, Visa, Paypal, L/C, D/A, D/P

Supply Ability : 50,000pcs obd2 scanner codes per month

Delivery Time : for samples, stocks are available; 5000pcs obd2 scanner codes in a week

Packaging Details : Model : KW818 scan tool Item size( cm):20*10*4 package size (cm):25*18*8 Item Net weight(kgs):0.665 Package Gross weight(Kg):0.77 qty/cn: 25pcs/cn, Carton size : 55*39*46cm, Carton Weight :20KG/ carton

Product Name : KW818 OBDII diagnotic tool

Application : Widely compatible with 12v both diesel and gasoline vehicles

Main Function : Read and erase fault codes, read live sensor data

Feature : Free upgrade and Print data via PC

Display mode : 2.8 inchesTFT color screen,built-in speaker,

Color : Black and Red for choice

Language : English, French, German, Russian, Dutch, Spanish

Warranty : 12 months

Contact Now

KONNWEI KW818 12V Car OBD2 EOBD Diagnostic Tool life time free upgrade six international languages

Description:

The Kw818 NEW On-Board Diagnostic 2 / EOBD / CAN Auto Diagnostic Scanner supports all 10 On-Board Diagnostic II test modes on all compliant vehicles for a complete diagnosis. Featuring the unique patented One-Click I/M Readiness Key, TFT color display and built-in speaker, Real Time Battery Voltage Monitoring, the KW818 is truly the ultimate in power and affordability, allowing users to do their jobs faster.

Key Parameter:

Display	2.8 inchesTFT color screen
Application	Widely compatible with 12v both diesel and gasoline vehicles
IC chip	STM32F103VCT6
Function	Read and erase fault codes, read live sensor data
Display	2.8inchs TFT color screen display and built-in speaker
Feature	print data and free upgrade via PC
Color	Black & Red optional
Support Protocol	ISO 9141, KWP2000, SAE J1850, CAN,J1850 VPW,J1850 PWM
Languages	English, Spanish, French, Russian,German, Dutch

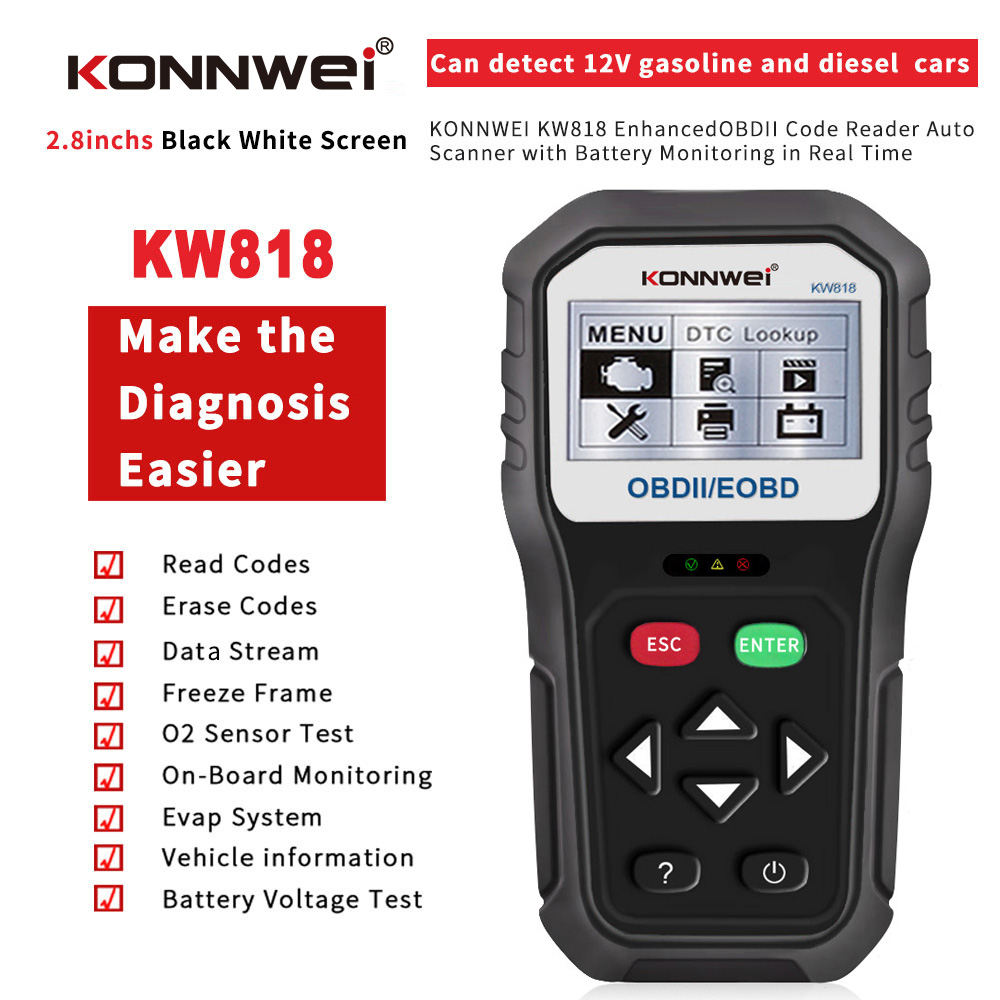

Scanner Features & Functions:
*Works on all 1996 and later OBDII compliant US, European and Asian vehicles
*Easily determines the cause of the Check Engine Light ( MIL)
*Retrieves generic (P0, P2, P3, and U0) and manufacturer specific (P1, P3, and U1) codes
*Turns off Check Engine Light (MIL), clears codes and resets monitors
*Displays DTC definitions on unit screen
*Views freeze frame data
*Displays monitor and I/M readiness status (emissions)
*Identifies pending codes
*eads live PCM datastream
*Displays live O2 sensor test data
*Graphs data C (1996 and newer)
*Reads, stores & playbacks live sensor data
*Memory/battery backup for off-vehicle data review and analysis
*Multilingual menu:--- English, Spanish, French, German, Dutch, Russian
*Performs modules present test
*Retrieves vehicle information (VIN, CIN and CVN)
*Supports CAN (Controller Area Network) and all other current
*OBD-II protocols
*Built-in OBD-II DTC lookup library
*Large easy-to-read backlit LCD screen
*Software upgradeable via internet
*Prints data via PC

Application :

1. Konnwei items Used For All 12V Gasoline And Diesel Car After 1996 With OBD2 EOBD Protocol

2. Konnwei items support the following 9 Protocol :

(1) SAE J1850 PWM(41.6Kbaud);

(2) SAE J1850 VPW(10.4Kbaud);

(3) ISO9141-2(5 baud init,10.4Kbaud);

(4) ISO14230-4 KWP(5 baud init,10.4 Kbaud);

(5) ISO14230-4 KWP(fast init,10.4 Kbaud);

(6) ISO15765-4 CAN(11bit ID,500 Kbaud);

(7) ISO15765-4 CAN(29bit ID,500 Kbaud);

(8) ISO15765-4 CAN(11bit ID,250 Kbaud);

(9) ISO15765-4 CAN(29bit ID,250 Kbaud).

KW818 specification:
*Display: 2.8" (320*240dpi) color screen
*Operating Temperature: 0 to 60 ℃ (32 to 140 ℉)
*Storage Temperature: -20 to 70 ℃ (-4 to 158 ℉)
*Power: 8 to 18 V provided via vehicle
*Supported Protocols: J1859-41.6, J1850-10.4, ISO9141, KWP2000 (ISO 14230), and CAN (Control Area *Network ISO 11898)
*Dimensions: 199mm (7.83in) x 104.5mm (4.11'') x 37.5mm (1.48'')
*Weight: 0.665KG

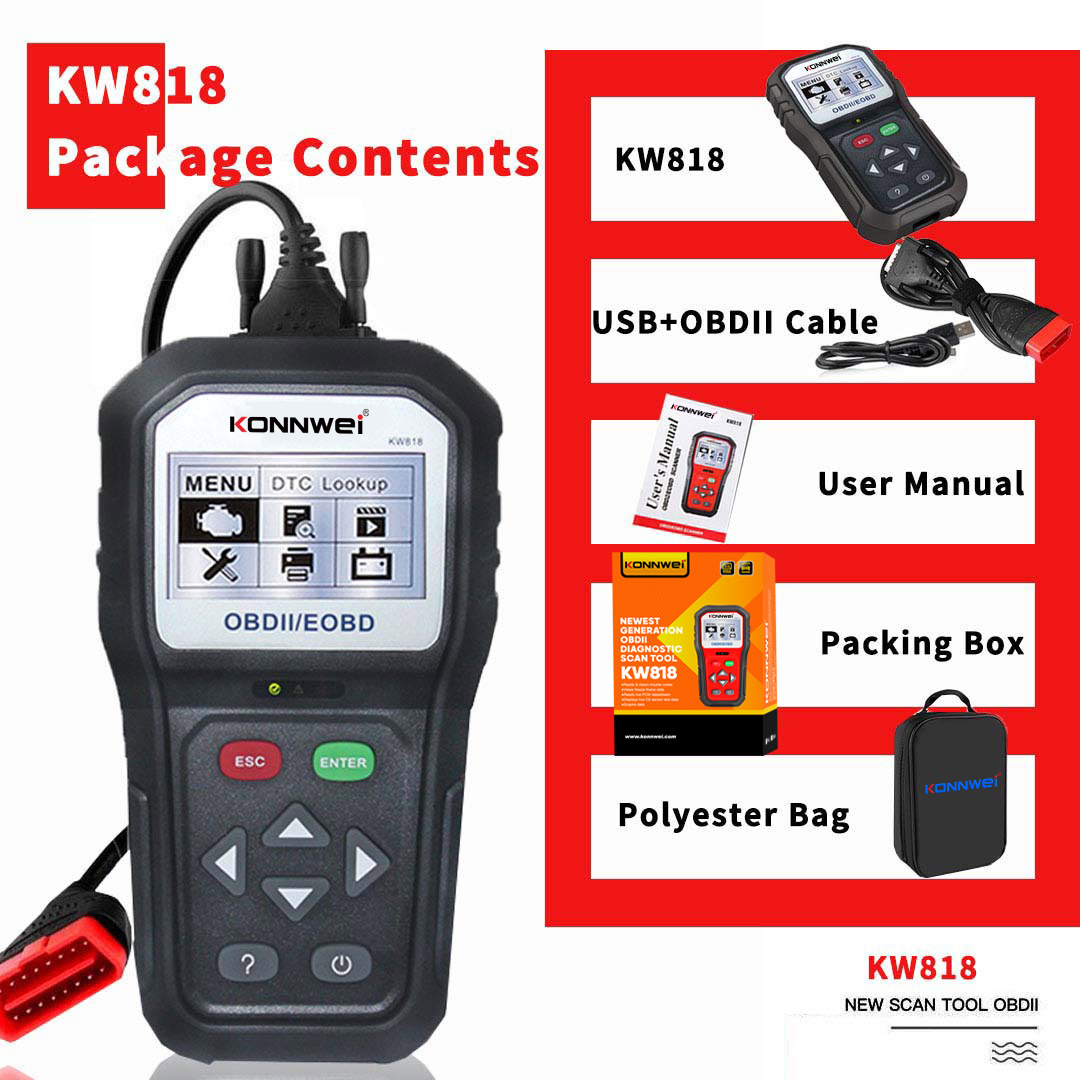

Package list:

KONNWEI KW818 12V Car OBD2 EOBD Diagnostic Tool life time free upgrade six international languages

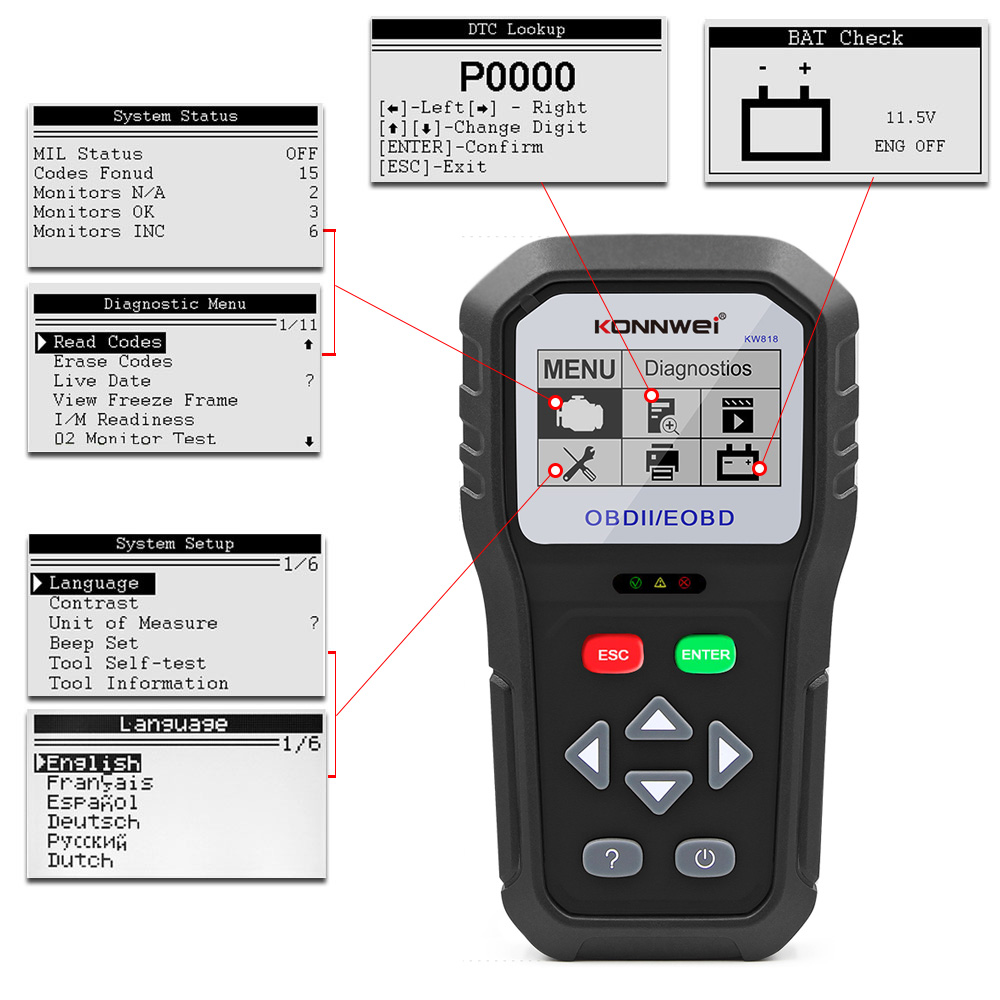

Pictures for you to know more about KW818:

KONNWEI KW818 12V Car OBD2 EOBD Diagnostic Tool life time free upgrade six international languages
