KONNWEI KW912 Bluetooth ELM327 OBD II Mini Dagnostic tool for 12V car support android multi language can choice
Description:
kw912 OBD2 mini code reader apply For All 12V Gasoline And Diesel Vehicles/Hybrid Electric Vehicles and all with 25K80 chip,it's a 16 Pin plug that plugged into the vehicle OBD port. It comes with an ON/OFF switch to prevent constantly disconnecting your unit from the OBDII port.It also support high speed communication and low power sleep mode.By connecting with phone,it can quickly read car engine emissions data and check drive cycle verification.

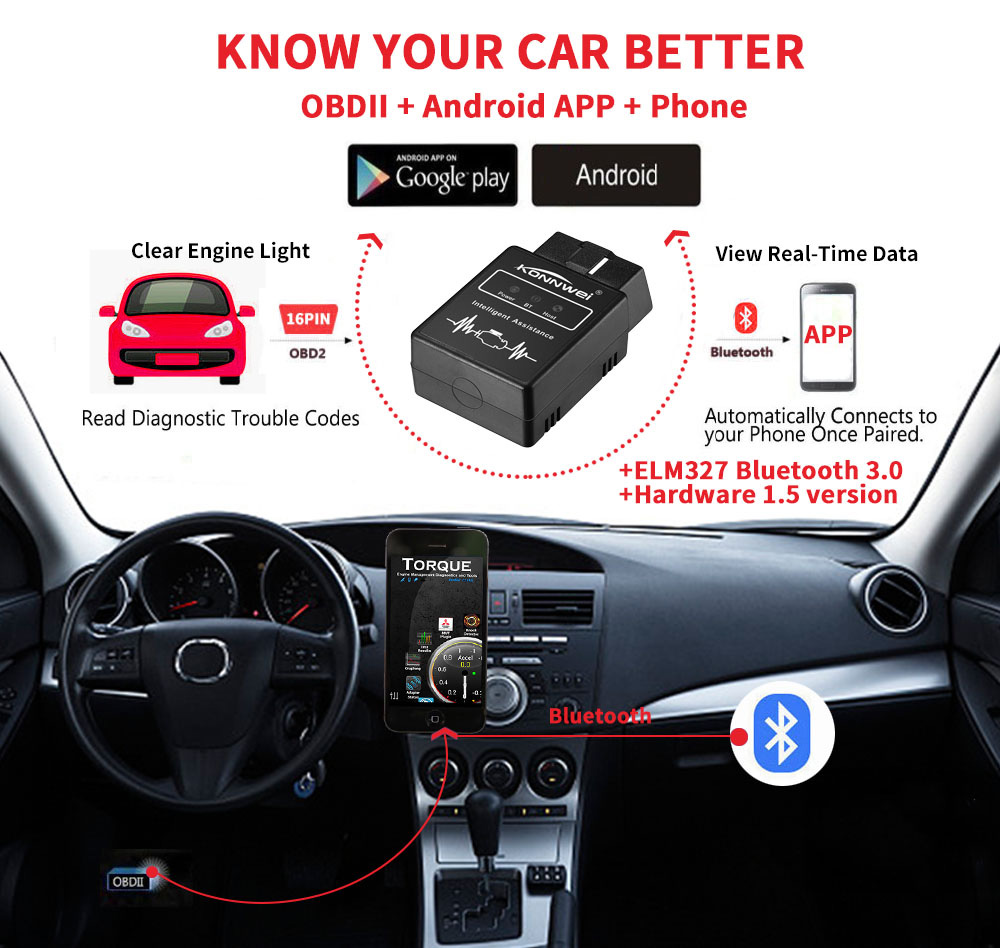

The device is a small adapter that plugged into the vehicle OBDII connector via bluetooth, it is suitable for android smart phone or Windows PC. With associated diagnostic procedures, Free obd software provided in the package . With this product, you will be able to perform a complete computer diagnostic car and even to correct minor faults without resorting to service stations.
Main features:
- Display real time performance of your car, such as momentum, vehicle speed, oil pressure, coolant temperature, engine load, intake manifold pressure, throttle position and air intake temperature.
- If the communication is terminated, this item will automatically switch to sleep mode in half a hour.
- The adapter adopts fast and reliable chips which promise its stable wireless connection.
- It supports all OBDII protocols: J1850 VPW, J1850 PWM, IS09141 - 2, KWP2000 and CAN.
- Small size and compact structure, plug and play.
Protocols :
0.Automatic
1.SAE J1850 PWM(41.6Kbaud)
2.SAE J1850 VPW(10.4Kbaud)
3.ISO9141-2(5 baud init,10.4Kbaud)
4.ISO14230-4 KWP(5 baud init,10.4 Kbaud)
5.ISO14230-4 KWP(fast init,10.4 Kbaud)
6.ISO15765-4 CAN(11bit ID,500 Kbaud)
7.ISO15765-4 CAN(29bit ID,500 Kbaud)
8.ISO15765-4 CAN(11bit ID,250 Kbaud)
9.ISO15765-4 CAN(29bit ID,250 Kbaud)
A.SAE J1939 CAN(29bit ID,250*Kbaud)
B.USER1 CAN(11*bit ID,125*Kbaud)
C.USER2 CAN(11*bit ID,50*kbaud)
*default settings(user adjustable)
Functions:
- Vehicle Speed
- RPM
- Fuel Consumption
- Engine Coolant Temp
- Fuel Pressure
- Calculated Engine Load
- Throttle Position
- Intake Manifold Pressure
- Air Intake Temp
- Timing Advance
- Mass Air Flow
- Fuel Level
- Barometric Pressure
- EVAP System Vapor Pressure
- Fuel Trim
| Brand | KONNWEI |
| Product name | KW912 BT wireless Scanner |
| Main Function | Show real time performance of your vehicle pricisely |
| connector | 16 pins |
| Connection Type | BT wireless |
| Chip | 25K80 |
| Support | Android and windows pc |
| color | Black only |
| Language | Use phone to select the language you need |
| Warranty | 2 years |
Package:
1x KW912
1 * User's manual
1 * CD
