ELM327 no wire no battery mini g scan 2 diagnostic tool kw902 wifi can calculate load value of car
| Item No. | KW902 wifi |
| Brand | KONNWEI |
| Language | English is default language and you could choose the language what you need in the phone setting interface |
| WIFI standard | 802.11a.b/g |
| System | Android and IOS are available |
| Feature | Android is free torque ,IOS is unfree dashcommmand |
| Color | white , red , green , orange , black |
| MOQ of OEM | 1000 pieces |
| Battery function | It doesn't support battery test |
Functions of ELM327 no wire no battery mini g scan 2 diagnostic tool kw902 wifi can calculate load value of car
1. Read diagnostic trouble codes, both generic and manufacturer-specific, and display their 2.meaning (over 3000 generic code definitions in the database).
3. Clear trouble codes and turn off the MIL ("Check Engine" light)

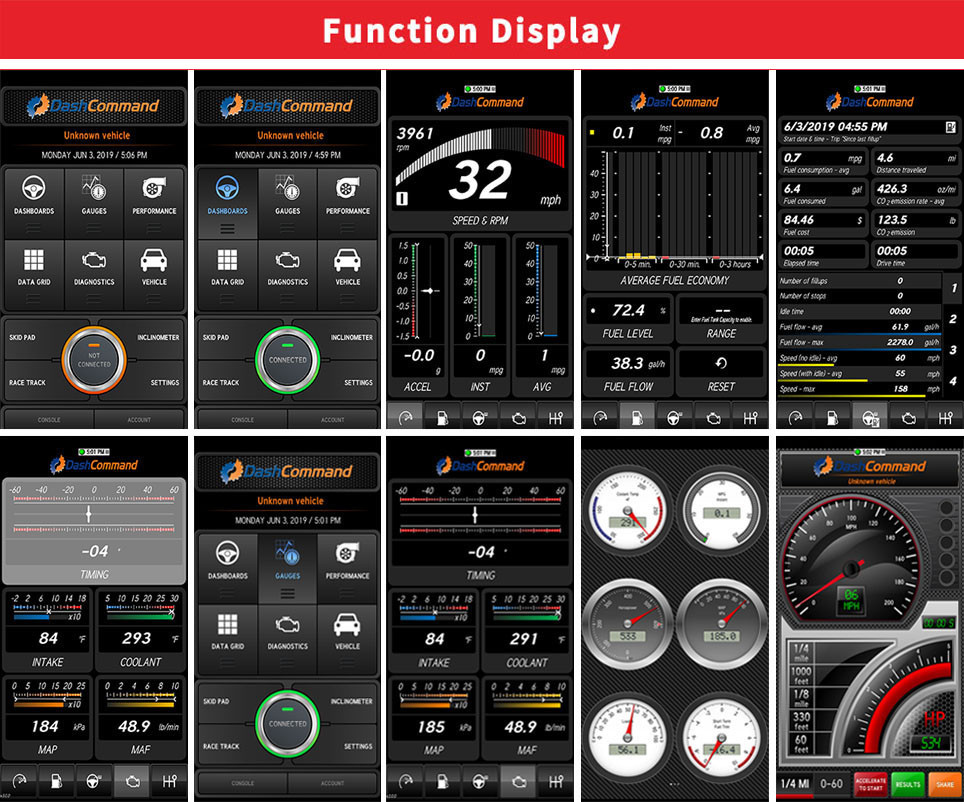

4. Display current sensor data, including:
5. Engine RPM
6. Calculated Load Value
7. Coolant Temperature
8. Fuel System Status
9. Vehicle Speed
10. Short Term Fuel Trim
Specifications of ELM327 no wire no battery mini g scan 2 diagnostic tool kw902 wifi can calculate load value of car:
SSID: CLKDevices
Port: 35000
Range: 50 ft (Line of sight)
Antenna: Internal
Power Consumption : 0.75 Watts (With Power Switch)
Wifi Standard: 802.11a/b/g
Operating Temperature: -15 to 100 Deg Celsius
Plastic: Automotive Grade
Physical Dimensions: 2.75 x 1.25 x 1.2 inches
ELM327 no wire no battery mini g scan 2 diagnostic tool kw902 wifi can calculate load value of car Support Protocol:
1. SAE J1850 PWM(41.6Kbaud)
2. SAE J1850 VPW(10.4Kbaud)
3 .ISO9141-2(5 baud init,10.4Kbaud)
4. ISO14230-4 KWP(5 baud init,10.4 Kbaud)
5. ISO14230-4 KWP(fast init,10.4 Kbaud)
6. ISO15765-4 CAN(11bit ID,500 Kbaud)
7. ISO15765-4 CAN(29bit ID,500 Kbaud)
8. ISO15765-4 CAN(11bit ID,250 Kbaud)
9. ISO15765-4 CAN(29bit ID,250 Kbaud)
A. SAE J1939 CAN(29bit ID,250*Kbaud)
B. USER1 CAN(11*bit ID,125*Kbaud)
C. USER2 CAN(11*bit ID,50*kbaud)
*default settings(user adjustable)
Package includes:
1x KW902 WIFI Scanner
1x Software CD
1x English User Manual
More pictures of ELM327 no wire no battery mini g scan 2 diagnostic tool kw902 wifi can calculate load value of car
